2018-2020 Wrangler JL Supercharger

Edelbrock 15284

Supercharger Kit; E-Force; For Use On Jeep 3.6L Engines; Black; Powder Coated; With Supercharger/ Intake Manifold/ Drive Pulleys/ Belt/ Hoses/ Injectors/ Wiring; Free Shipping or Discount Installation Available
California Air Research Board Legal For Use In All 50 States


SKU: 15284 Category: Brand


2018-2020 Wrangler JL Supercharger

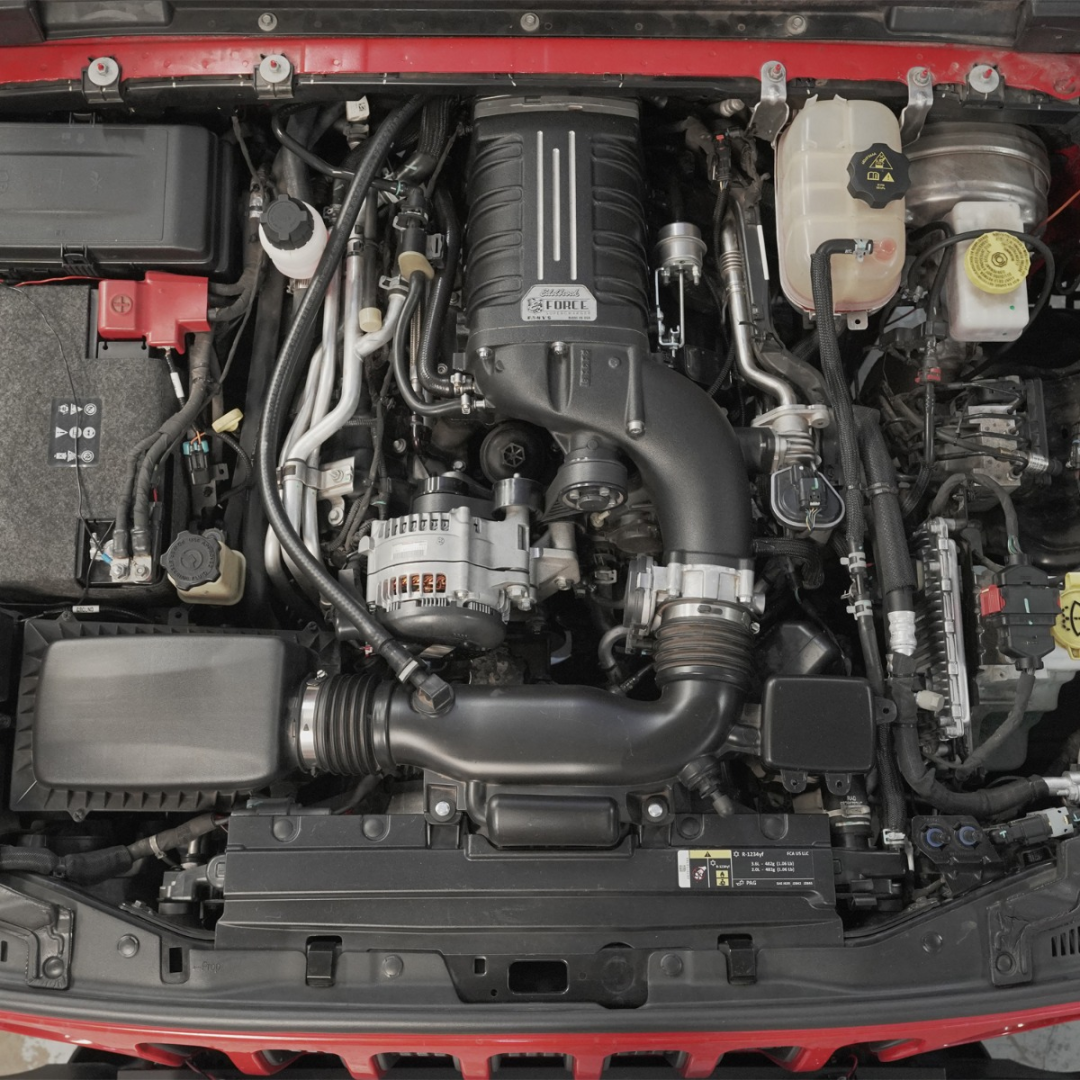

The industry’s most reliable forced induction system is now available for the 2018-2020 Jeep Wrangler JL and Gladiator JT with the 3.6L Pentastar V6 engine. The Edelbrock Supercharger With Tuner #15284 is engineered to deliver a 46% increase in rear-wheel horsepower with 26.9% more rear-wheel torque in a 50-state emissions-legal bolt-on kit that fits under the factory hood with no modification. This kit features the latest TVS R1320 rotor assembly in an Edelbrock supercharger housing mated to a lower manifold with a high-capacity dual-pass intercooler. An integrated bypass valve helps to eliminate parasitic power loss under light throttle while helping to improve mileage potential under normal driving conditions. This kit comes with all necessary hardware, hoses, tuner and full-color installation manual to simplify the installation. Edelbrock Superchargers for the 2018-20 Jeep JL/JT are manufactured by Edelbrock in the USA and include a free 3-Year/36,000-mile powertrain warranty when the supplied calibration is used.

2018-2020 Wrangler JL Supercharger

Availability Available
Application Application Specific
UPC 00085347152841
Vehicle Model Wrangler
Gasket Or Seal Included Yes
Mounting Hardware Included Yes
Quantity Kit
Mounting Bracket Included Yes
CARB Executive Order Number D-215-118
Availability Note Available to Order
Warranty 36 Months
Housing Material Cast Aluminum
System Type Stage 1 – Street System
Oil Capacity 125 mL
Internal Step Up Yes
Center Housing Cooling Type Intercooler
Maximum Torque 272RW (8-Speed Auto Trans); With 32.7in. Diameter LT285/70R17 Off Road Tires; 4.10 Axle Ratio ft-lb
Outside Pulley Diameter 2.625 in
Fuel Injector Type 42 lb/hr
Maximum Horsepower 331RW (8-Speed Auto Trans); With 32.7in. Diameter LT285/70R17 Off Road Tires; 4.10 Axle Ratio
Emissions Code

 EO Number: D-215-118

Hazardous Materials Warning WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program, which can be downloaded at www.edelbrock.com. For safety, the Edelbrock supplied program will retain the factory vehicle speed limiter setting.
Finish Black Powder Coated
Maximum Boost Pressure 8 PSI
Pulley Belt Width 6-Rib
Universal Or Specific Fit Specific

 Edelbrock 15284

2018-2020 Wrangler JL Supercharger


Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
