2019-2020 Ford F150 V8 Supercharger

5.0L 4V W/ Tune

muffler shop | financing

Muffler shop | directions

muffler shop| get a quote

Free Shipping or Discount Shipping

$9,253.95

SKU: 15812 Category: Brand

Description

2019-2020 Ford F150 V8 Supercharger

The Edelbrock 2019-2020 Ford F150 V8 Supercharger System part #15812 is designed for use on a 2019-2020 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability.
The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger.

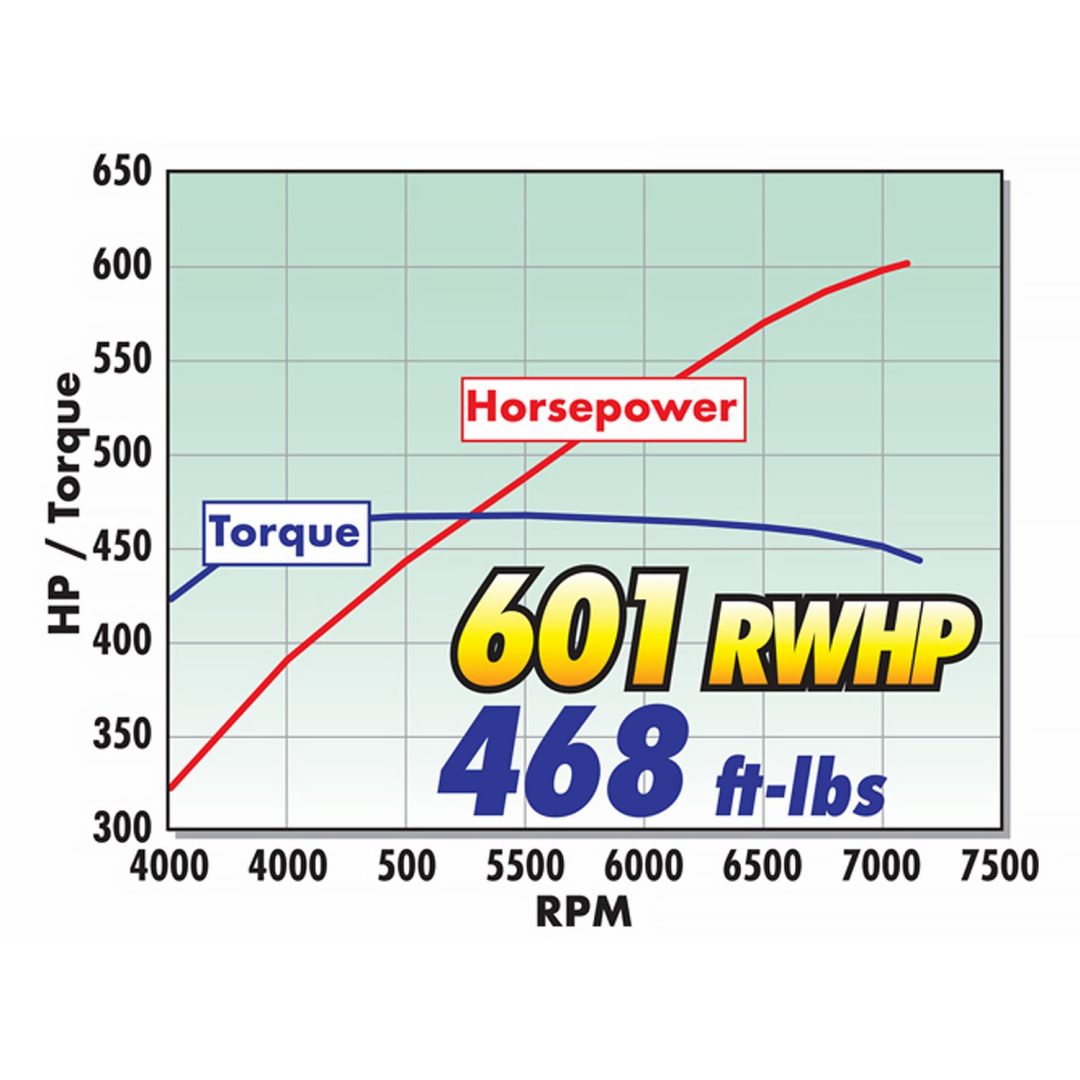

The Edelbrock #15812 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. This kit includes a tune for 91 or 93 octane fuels and makes approximately 601whp 468wtq using 93 octane backed by our FREE, industry-leading 3-year/36,000 mile powered train warranty where applicable.

2019-2020 Ford F150 V8 Supercharger

Edelbrock has released a new Edelbrock Supercharger System #15812 for the 2019-2020 Ford F-150 truck powered by the 5.0L Ti-VCT Coyote V-8 engine. This kit is 50-state emissions legal and produces 601 horsepower with 468 ft-lbs of torque.

Edelbrock

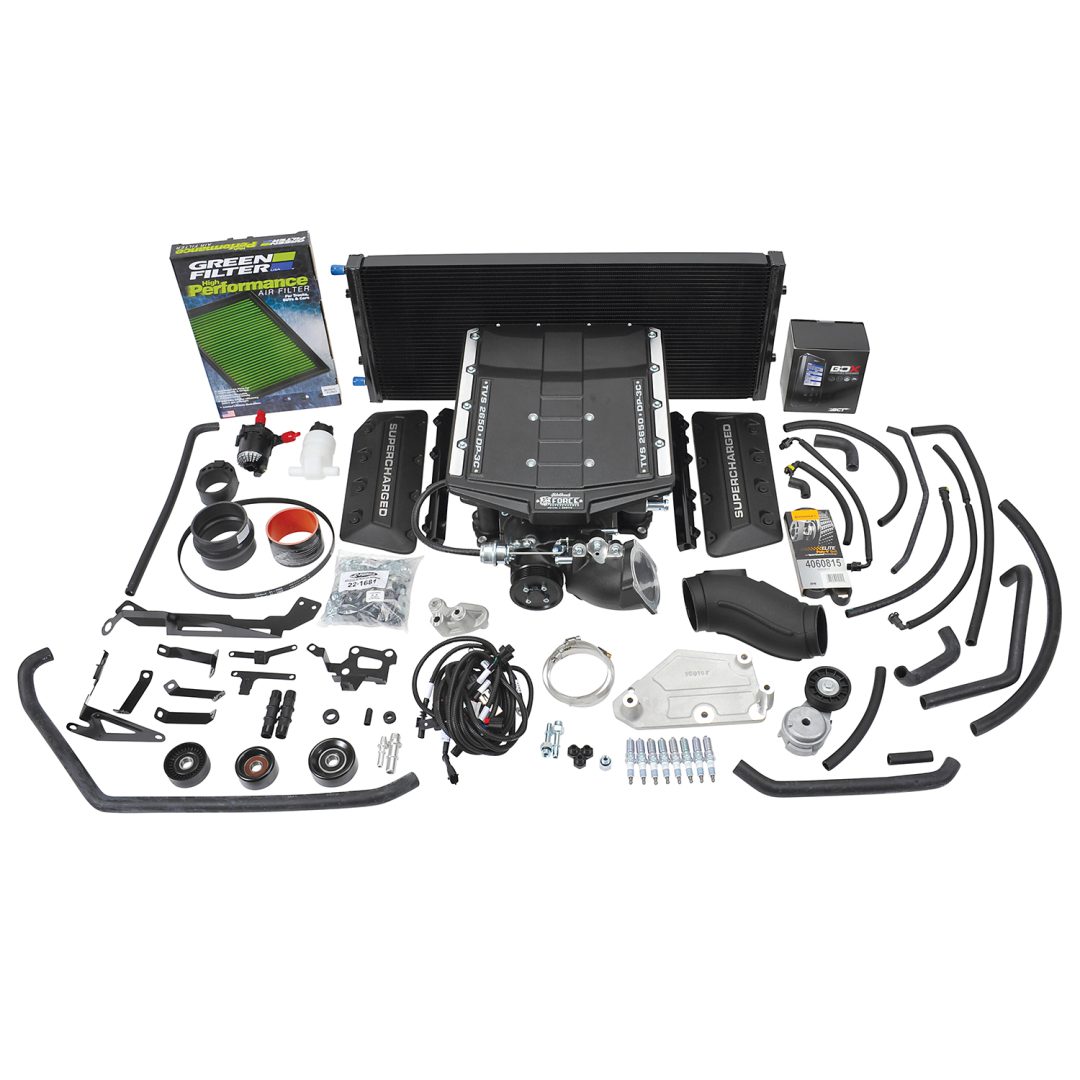

Supercharger Kit; E-Force; For Use With Ford 5.0 Engine; Roots Style; Multi-Port Injection; Black/ Silver; With Fuel Rail/ Injectors/ Hoses/ Brackets/ Filter/ Belt/ Handheld Tuner Free Shipping or Discount Installation Available
California Air Research Board Legal For Use In All 50 States
Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

The installation is very important.

Our Edelbrock Supercharger installers have been factory trained and are the best in the industry. The system is completely checked. No rattles, leaks or crooked parts here!

Edelbrock Supercharger Installation Available

We all know that the right tools for the right job is very important. At FMS Performance we believe that using the the right tools for Edelbrock Supercharger Installation starts with the right installer.

Our technicians have been professionally educated and have completed industry degrees from accredited schools. They also continue their education with a daily practice and updates when available.

FMS has a specialist for each segment of installation. We prefer to supply you with the parts we install but we can install your supplied products as well.

FMS Performance offers and installs cold air intake kits. Installing and custom building performance exhaust systems. Our stores install automotive computer tuners.  headers. superchargers.  tonneau covers.  suspension kits, lowering and lifting. We install shocks and struts. FMS offers complete brake kit or brake service. We mount and balance wheels and tires.

We can help with almost anything truck accessory related. For your convenience you can select the button below for a quote or appointment. Check us out on FaceBook.

Additional information

Installation

Make

Model

Year

,

Engine Size

Product Specs

More Information
Manufacturer Edelbrock
Application Application Specific
UPC 085347158126
System Type Stage 1 – Street System
Vehicle Model F-150
Housing Material Cast Aluminum
Gasket Or Seal Included Yes
Quantity Kit
Oil Capacity 150 mL
Center Housing Cooling Type Intercooler
Internal Step Up Yes
Mounting Bracket Included Yes
Pulley Groove Quantity 6-Rib
Outside Pulley Diameter 3.5 in
Maximum Torque 468RW ft-lb
Maximum Horsepower 601RW
Availability Note Available to Order
Warranty 36 Months
Rotor Type Eaton TVS 2650
Mounting Hardware Included Yes
Calibration Yes

PROP 65 COMPLIANCE

  WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Installation Notes

Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.
